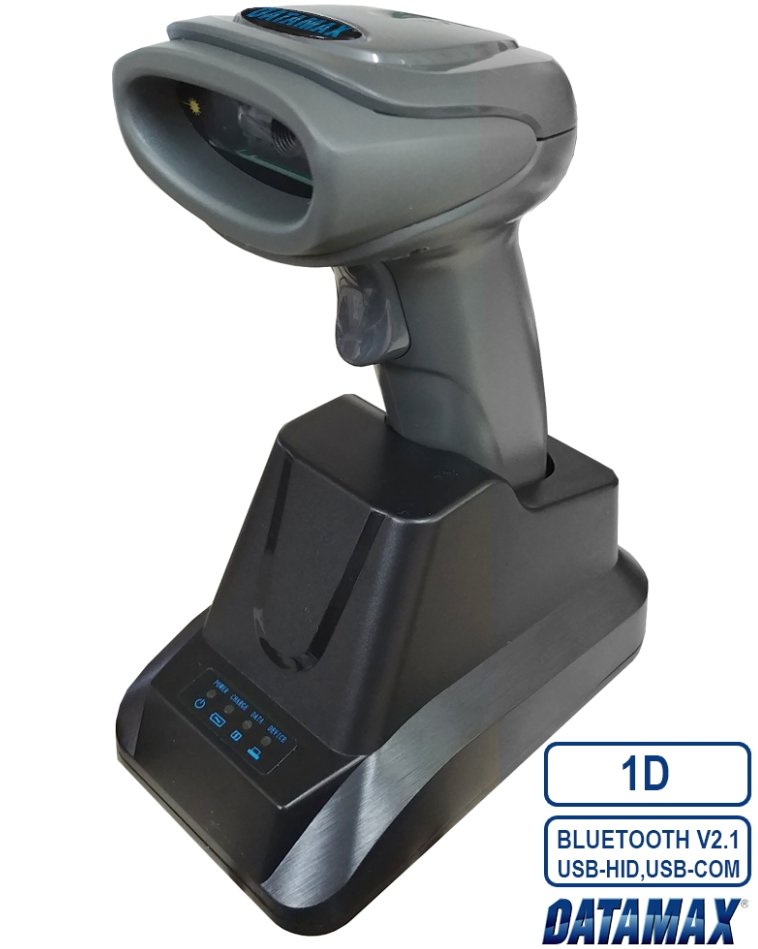

MÁY QUÉT MÃ VẠCH DATAMAX 1D M2440

• CHI TIẾT SẢN PHẨM

Thông số kỹ thuật

• Model: M2440 (1D)
• Light sources: 617nm RED LED
• Scan Type: CCD Image Sensor
• Decoded capability:
• 1D: UPC/EAN, UPC/EAN with supplemental, Bookland EAN, ISSN, UCC Coupon, Extended Code, Code 128, GSI-128, ISBT 128, CODE39, CODE93 Full ASCII, Trioptic Code 39, Code 32, Code 11, Matrix 2 of 5, Interleave 2 of 5, Discrete 2 of 5, etc
• Scan type: image COMS
• Scan speed: 300 scans/sec
• Scan method: manually, automatically, successively scanning
• Scan angel: yaw 65°, rotation 360°, pitch 55°
• Scan mode:Manual/Automatic/continuous
• Precision: SR: Code 39 4.8mil, UPS60% 5mil, PSF417 5mil, Datamatrix 7.5mil
• Depth of scan field: 5-390mm
• Error rate: <1/50 million
• Interface: USB-HID
• Operating frequency: Bluetooth V2.1+EDR (Class 1)
• Transmission distance: <=250m
• Storage ability: 512,000 bytes
• Pairing mode: 1 to 1, 1 to many, many to 1 (max. 7 channels)
• Receiving end: dedicated Bluetooth receiving base, common Bluetooth adapter, Android, iOS mobile devices
• FRID function: supported
• Physical parameters
• Dimension: 176mm(L)*100mm(W)*72mm(H)
• Weight: 354g
• Material: ABS+PC
• Cable length: 2m
• Environmental parameters
• Operating temperature: -20°C - 50°C
• Storage temperature: -40°C - 70°C
• Relative humidity: 5-85% relative humidity, non-condensing
• Drop resistance: withstand multiple 3m drops onto concrete
• Electronical parameters
• Voltage: DC 5V±1%
• Current: 585mA (operating)
• Lithium battery: 2200mA long lifespan lithium battery
• Battery working time: 5 hours
• Battery charging mode: micro USB cable, point-contact
